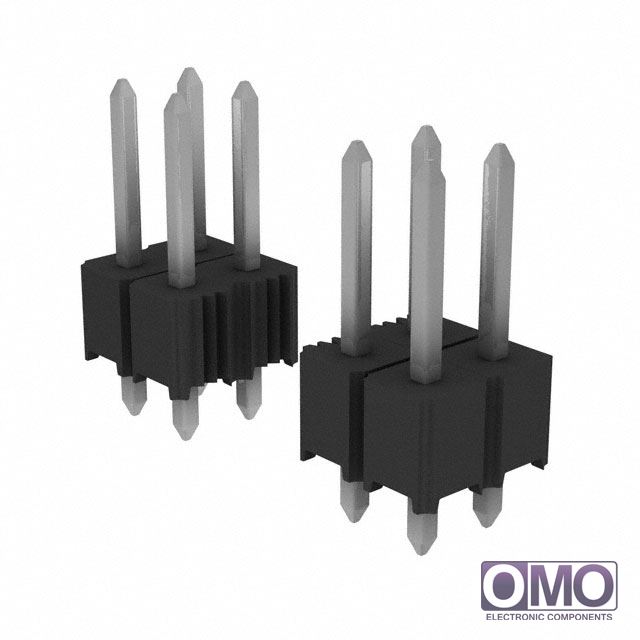

- Part Number
TSW-109-07-T-D
- Manufacturer
Samtec, Inc.
- Description
- CONN HEADER 18POS .100" DL TIN
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of TSW-109-07-T-D, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add TSW-109-07-T-D with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of TSW-109-07-T-D.
- We are offering TSW-109-07-T-D for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of TSW-109-07-T-D
| Packaging | Bulk | |
| Contact Type | Male Pin | |
| Connector Type | Header, Unshrouded | |
| Number of Positions | 18 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Contact Mating Length | 0.230" (5.84mm) | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | - | |
| Color | Black | |
| Other Names | SAM1034-09 TSW-109-07-T-D-ND TSW10907TD | |
| call me | [email protected] | |
