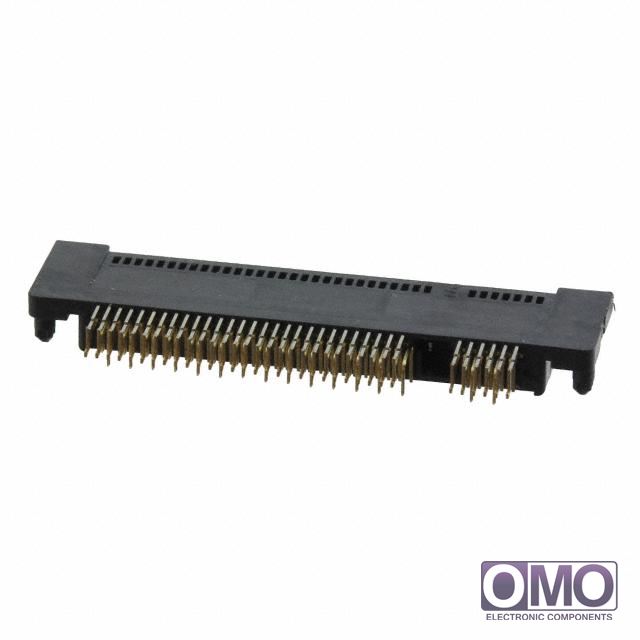

SM3ZS067B120AB2R1500

View larger image

Part Number

SM3ZS067B120AB2R1500

Manufacturer

Description
NGFF CARD EDGE M.2 1.2MM
Category
Connectors, Interconnects
Family
Card Edge Connectors - Edgeboard Connectors
  • To learn about the specification of SM3ZS067B120AB2R1500, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add SM3ZS067B120AB2R1500 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of SM3ZS067B120AB2R1500.
  • We are offering SM3ZS067B120AB2R1500 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SM3ZS067B120AB2R1500
PackagingTape & Reel (TR)
Card TypeNon Specified - Dual Edge
GenderFemale
Number of Positions/Bay/Row-
Number of Positions67
Card Thickness0.031" (0.79mm)
Number of Rows2
Pitch0.020" (0.50mm)
FeaturesBoard Lock
Mounting TypeThrough Hole, Right Angle
TerminationSolder
Contact MaterialCopper Alloy
Contact FinishGold
Contact Finish Thickness5.11µin (0.13µm)
Contact Type-
Color-
Flange Feature-
Operating Temperature-40°C ~ 80°C
Material - InsulationThermoplastic
Read OutDual
Other Names670-2753-2
SM3ZS067B120ABR1500
