- Part Number

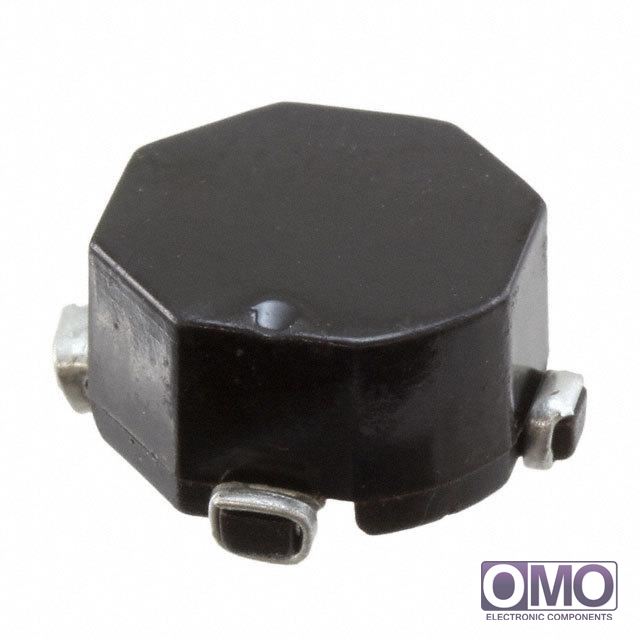

SCX147-5R0
- Manufacturer
Bel Fuse Inc.
- Description
- INDUCT ARRAY 2 COIL 5UH SMD
- Category
- Inductors, Coils, Chokes
- Family
- Arrays, Signal Transformers
- To learn about the specification of SCX147-5R0, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add SCX147-5R0 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of SCX147-5R0.
- We are offering SCX147-5R0 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of SCX147-5R0
| Packaging | Tape & Reel (TR) | |
| Number of Coils | 2 | |
| Inductance - Connected In Series | 19.6µH | |
| Inductance - Connected In Parallel | 5µH | |
| Tolerance | ±20% | |
| Current Rating - Parallel | 4.4A | |
| Current Rating - Series | 2.2A | |
| Current Saturation - Parallel | - | |
| Current Saturation - Series | - | |
| DC Resistance (DCR) - Parallel | 14 mOhm Max | |
| DC Resistance (DCR) - Series | 56 mOhm Max | |
| Shielding | Unshielded | |
| Operating Temperature | - | |
| Mounting Type | Surface Mount | |
| Package / Case | Nonstandard | |
| Size / Dimension | 0.567" L x 0.567" W (14.40mm x 14.40mm) | |
| Height | 0.276" (7.00mm) | |
| call me | [email protected] | |
