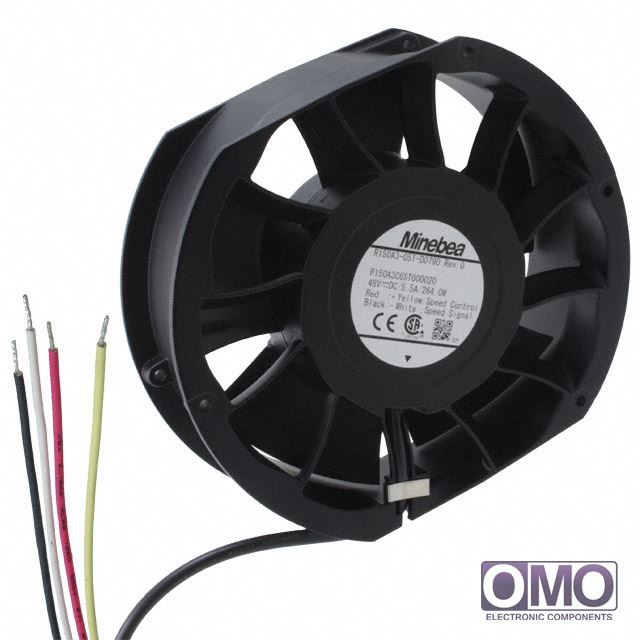

R150A3-051-D0790

To learn about the specification of R150A3-051-D0790, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add R150A3-051-D0790 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of R150A3-051-D0790.
We are offering R150A3-051-D0790 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of R150A3-051-D0790

Voltage - Rated	48VDC
Size / Dimension	Rectangular/Rounded - 172.7mm L x 150mm H x 50.8mm W
Air Flow	544.0 CFM (15.40m³/min)
Static Pressure	6.210 in H2O (1546.9 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	85 dB
Power (Watts)	196.8W
RPM	9300 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	2.3 lbs (1kg)
Operating Temperature	-22 ~ 158°F (-30 ~ 70°C)
Current Rating	4.1A
Voltage Range	30 ~ 72VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Aluminum
Material - Blade	Plastic
Other Names	P15556 R150A3051D0790
