PM3700-80

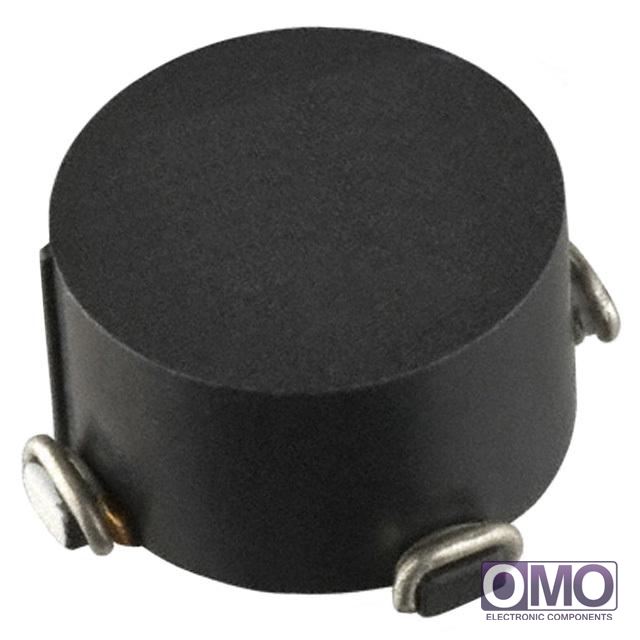

View larger image

Part Number

PM3700-80

Manufacturer

Description
CHOKE COMMON MODE 20MH SMD
Category
Filters
Family
Common Mode Chokes
  • To learn about the specification of PM3700-80, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add PM3700-80 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of PM3700-80.
  • We are offering PM3700-80 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PM3700-80
PackagingTape & Reel (TR)
Filter TypePower Line
Number of Lines2
Inductance20mH
Current1A
DC Resistance (DCR)250 mOhm Max
Impedance-
Operating Temperature-55°C ~ 105°C
Mounting TypeSurface Mount
Size / Dimension0.850" L x 0.850" W (21.60mm x 21.60mm)
Height (Max)0.450" (11.43mm)
Package / CaseHorizontal, 4 PC Pad
Other NamesPM370080
