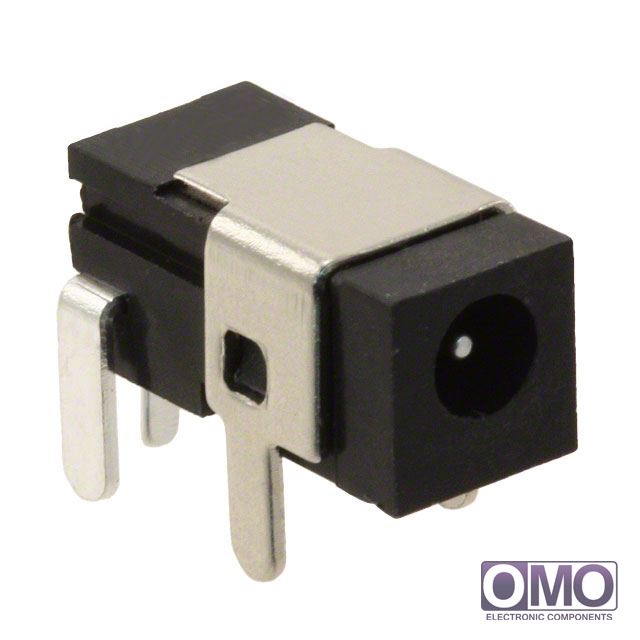

Part Number

PJ1-023

Manufacturer

Description
CONN PWR JACK 0.65X2.75MM W/SHLD
Category
Connectors, Interconnects
Family
Barrel - Power Connectors

  • To learn about the specification of PJ1-023, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add PJ1-023 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of PJ1-023.
  • We are offering PJ1-023 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of PJ1-023
Connector TypeJack
GenderMale
Plug/Mating Plug Diameter0.70mm ID, 2.35mm OD (EIAJ-1)
Number of Positions/Contacts2 Conductors, 3 Contacts
Internal Switch(s)Single Switch, Normally Closed
Mounting TypeThrough Hole, Right Angle
TerminationSolder
ShieldingShielded
FeaturesBoard Guide
ColorBlack
Voltage - Rated16VDC
Current Rating1A
Contact MaterialBrass
Contact Material - PlatingSilver
Housing ColorBlack
Housing MaterialThermoplastic
Operating Temperature-25°C ~ 85°C
Other Names045-0883R
CP1-023
PJ1023
