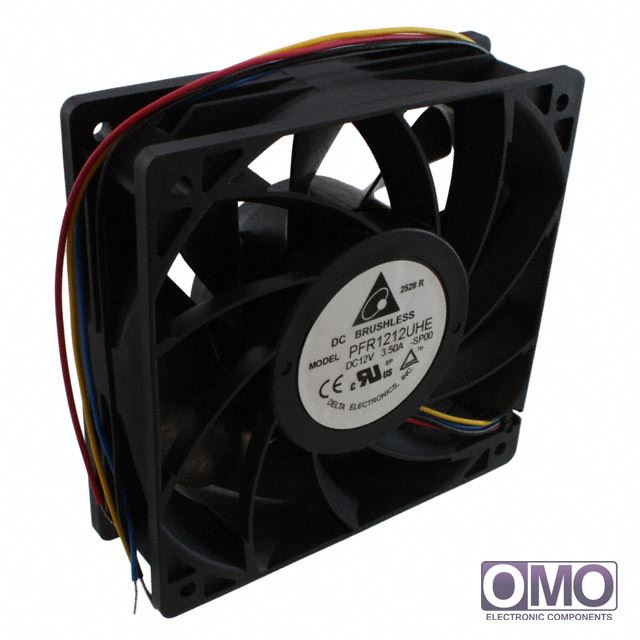

PFR1212UHE-SP00

To learn about the specification of PFR1212UHE-SP00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add PFR1212UHE-SP00 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of PFR1212UHE-SP00.
We are offering PFR1212UHE-SP00 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of PFR1212UHE-SP00

Voltage - Rated	12VDC
Size / Dimension	Square - 120mm L x 120mm H x 38mm W
Air Flow	228.6 CFM (6.47m³/min)
Static Pressure	1.206 in H2O (300.4 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	65.5 dB(A)
Power (Watts)	32.4W
RPM	6600 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	0.904 lb (410.05g)
Operating Temperature	-
Current Rating	2.7A
Voltage Range	8 ~ 13.2VDC
Life Expectancy	-
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	603-1711 PFR1212UHESP00
