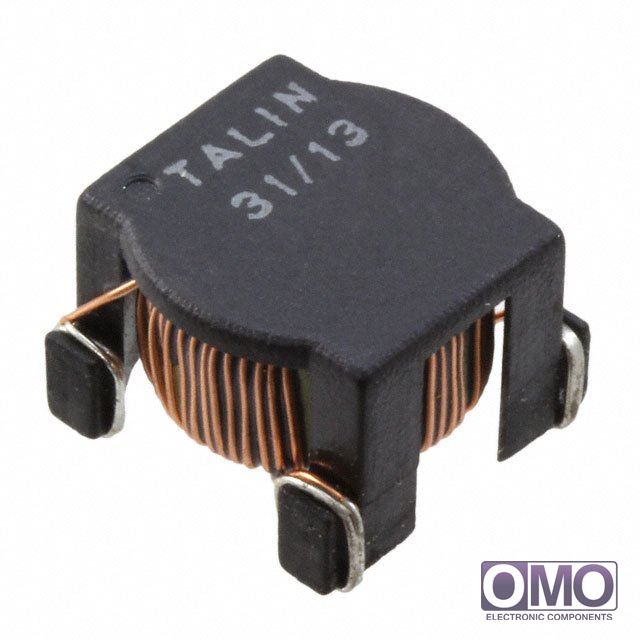

LCP5-2.04-47

To learn about the specification of LCP5-2.04-47, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add LCP5-2.04-47 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of LCP5-2.04-47.
We are offering LCP5-2.04-47 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of LCP5-2.04-47

Packaging	Cut Tape (CT)
Number of Coils	2
Inductance - Connected In Series	188µH
Inductance - Connected In Parallel	47µH
Tolerance	±15%
Current Rating - Parallel	2.04A
Current Rating - Series	1.02A
Current Saturation - Parallel	-
Current Saturation - Series	-
DC Resistance (DCR) - Parallel	72 mOhm
DC Resistance (DCR) - Series	288 mOhm
Shielding	Unshielded
Operating Temperature	-40°C ~ 125°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.512" L x 0.512" W (13.00mm x 13.00mm)
Height	0.358" (9.10mm)
Other Names	1295-1181 1295-1181-1 1295-1181-ND
call me	[email protected]

LCP5-2.04-47 Related Products

Talema Group LLC
