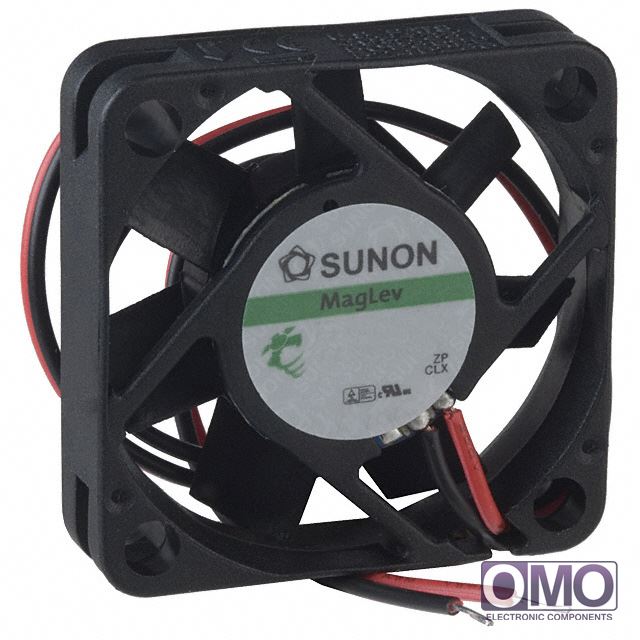

KDE0504PFV1.11.MS.A.GN

To learn about the specification of KDE0504PFV1.11.MS.A.GN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add KDE0504PFV1.11.MS.A.GN with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of KDE0504PFV1.11.MS.A.GN.
We are offering KDE0504PFV1.11.MS.A.GN for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of KDE0504PFV1.11.MS.A.GN

Voltage - Rated	5VDC
Size / Dimension	Square - 40mm L x 40mm H x 10mm W
Air Flow	8.0 CFM (0.226m³/min)
Static Pressure	0.190 in H2O (47.3 Pa)
Bearing Type	Vapo-Bearing™
Fan Type	Tubeaxial
Features	-
Noise	32 dB(A)
Power (Watts)	1.20W
RPM	7000 RPM
Termination	2 Wire Leads
Ingress Protection	-
Weight	0.037 lb (16.78g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.240A
Voltage Range	4 ~ 6VDC
Life Expectancy	-
Material - Frame	Polybutylene Terephthalate (PBT)
Material - Blade	Polybutylene Terephthalate (PBT)
Other Names	259-1342 E0540PFU14AVGRG KDE0504PFV1 11.MS.A.GN KDE0504PFV111MSAGN
