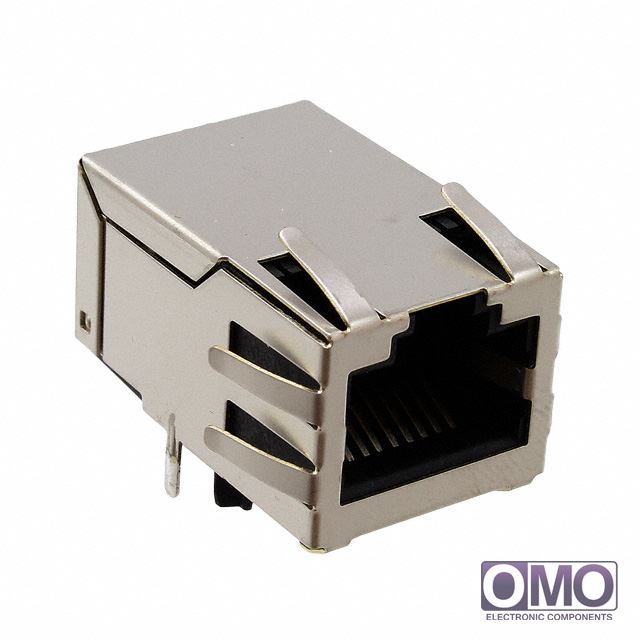

J1006F21NL

View larger image

Part Number

J1006F21NL

Manufacturer

Description
CONN MAGJACK 1PORT 100 BASE-TX
Category
Connectors, Interconnects
Family
Modular Connectors - Jacks With Magnetics
  • To learn about the specification of J1006F21NL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add J1006F21NL with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of J1006F21NL.
  • We are offering J1006F21NL for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of J1006F21NL
PackagingBulk
Connector TypeRJ45
Number of Ports1
Number of Rows1
Applications10/100 Base-TX, AutoMDIX
Mounting TypeThrough Hole
Orientation90° Angle (Right)
TerminationSolder
Height Above Board0.550" (13.97mm)
LED ColorDoes Not Contain LED
Number of Cores per Jack4
ShieldingShielded, EMI Finger
FeaturesBoard Guide
Tab DirectionUp
Contact MaterialPhosphor Bronze
Contact FinishGold
Contact Finish Thickness15µin (0.38µm)
Shield MaterialBrass
Housing MaterialThermoplastic
Operating Temperature0°C ~ 70°C
Other Names553-2103
J1006F21NL-ND
