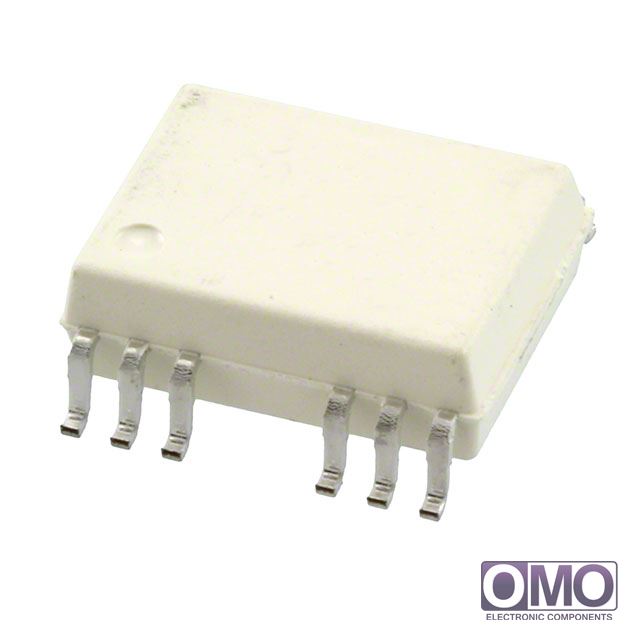

Part Number

HCPL-314J-000E

Manufacturer

Description
OPTOISO 5KV 2CH GATE DRIVER 16SO
Category
Isolators
Family
Isolators - Gate Drivers

  • To learn about the specification of HCPL-314J-000E, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add HCPL-314J-000E with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of HCPL-314J-000E.
  • We are offering HCPL-314J-000E for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of HCPL-314J-000E
PackagingTube
TechnologyOptical Coupling
Number of Channels2
Voltage - Isolation5000Vrms
Common Mode Transient Immunity (Min)25kV/µs
Propagation Delay tpLH / tpHL (Max)700ns, 700ns
Pulse Width Distortion (Max)-
Rise / Fall Time (Typ)50ns, 50ns
Current - Output High, Low500mA, -
Current - Peak Output600mA
Voltage - Forward (Vf) (Typ)1.5V
Current - DC Forward (If) (Max)25mA
Voltage - Supply10 V ~ 30 V
Operating Temperature-40°C ~ 100°C
Mounting TypeSurface Mount
Package / Case16-SOIC (0.295", 7.50mm Width)
Supplier Device Package16-SO
ApprovalsCSA, IEC/EN/DIN, UR
Other Names516-1477-5
HCPL314J000E
