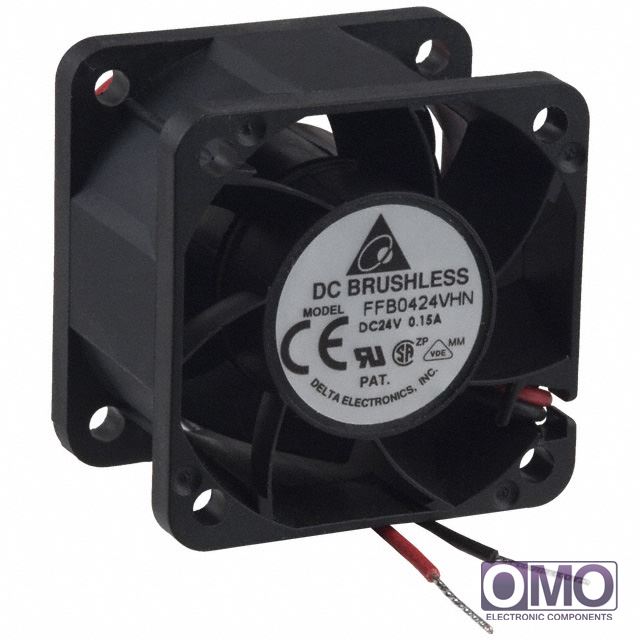

- Part Number
FFB0424VHN
- Manufacturer
Delta Electronics Groups Fans
- Description
- FAN AXIAL 40X28MM 24VDC WIRE
- Category
- Fans, Thermal Management
- Family
- DC Fans
- To learn about the specification of FFB0424VHN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add FFB0424VHN with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of FFB0424VHN.
- We are offering FFB0424VHN for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of FFB0424VHN
| Voltage - Rated | 24VDC | |
| Size / Dimension | Square - 40mm L x 40mm H x 28mm W | |
| Air Flow | 15.8 CFM (0.447m³/min) | |
| Static Pressure | 0.509 in H2O (126.8 Pa) | |
| Bearing Type | Ball | |
| Fan Type | Tubeaxial | |
| Features | - | |
| Noise | 45 dB(A) | |
| Power (Watts) | 2.40W | |
| RPM | 9500 RPM | |
| Termination | 2 Wire Leads | |
| Ingress Protection | - | |
| Weight | 0.07 lb (31.75g) | |
| Operating Temperature | - | |
| Current Rating | 0.100A | |
| Voltage Range | 14 ~ 26.4VDC | |
| Life Expectancy | - | |
| Material - Frame | Plastic | |
| Material - Blade | Plastic | |
| Other Names | 603-1018 | |
| call me | [email protected] | |
