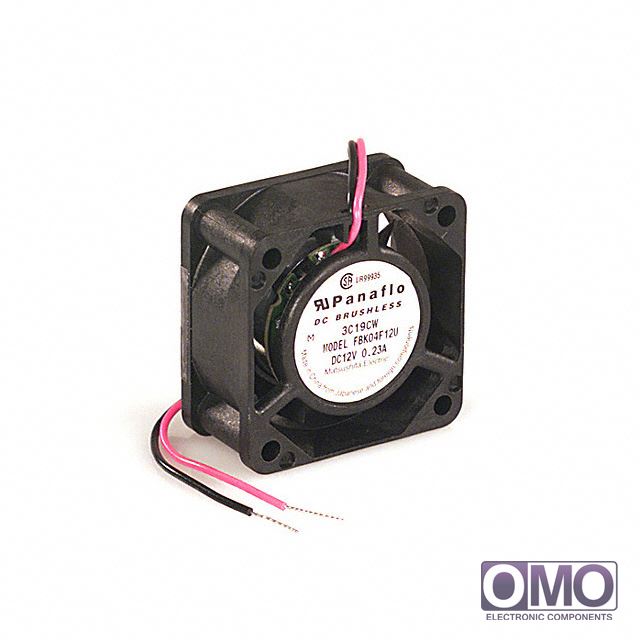

- Part Number
FBK04F12U
- Manufacturer
NMB Technologies Corp.
- Description
- FAN AXIAL 40X20MM 12VDC WIRE
- Category
- Fans, Thermal Management
- Family
- DC Fans
- To learn about the specification of FBK04F12U, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add FBK04F12U with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of FBK04F12U.
- We are offering FBK04F12U for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of FBK04F12U
| Voltage - Rated | 12VDC | |
| Size / Dimension | Square - 40mm L x 40mm H x 20mm W | |
| Air Flow | 9.2 CFM (0.260m³/min) | |
| Static Pressure | 0.472 in H2O (117.6 Pa) | |
| Bearing Type | Ball | |
| Fan Type | Tubeaxial | |
| Features | - | |
| Noise | 42 dB(A) | |
| Power (Watts) | 2.04W | |
| RPM | 9500 RPM | |
| Termination | 2 Wire Leads | |
| Ingress Protection | - | |
| Weight | 0.088 lb (39.92g) | |
| Operating Temperature | 14 ~ 158°F (-10 ~ 70°C) | |
| Current Rating | 0.170A | |
| Voltage Range | 7 ~ 13.8VDC | |
| Life Expectancy | - | |
| Material - Frame | Plastic | |
| Material - Blade | Plastic | |
| Other Names | FBK 04F12U FBK-04F12U P9723 | |
| call me | [email protected] | |
