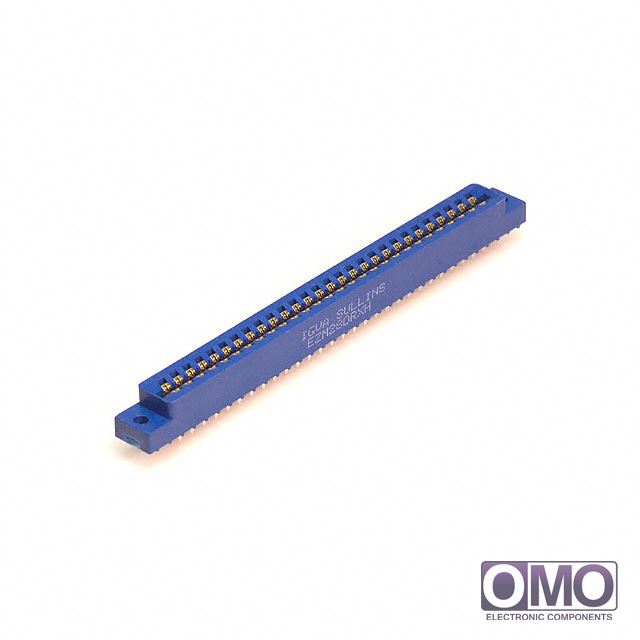

Part Number

EZM28DRXH

Manufacturer

Description
CONN EDGE DUAL .156 DIP 56POS
Category
Connectors, Interconnects
Family
Card Edge Connectors - Edgeboard Connectors

  • To learn about the specification of EZM28DRXH, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add EZM28DRXH with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of EZM28DRXH.
  • We are offering EZM28DRXH for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of EZM28DRXH
PackagingTray
Card TypeNon Specified - Dual Edge
GenderFemale
Number of Positions/Bay/Row28
Number of Positions56
Card Thickness0.062" (1.57mm)
Number of Rows2
Pitch0.156" (3.96mm)
Features-
Mounting TypeThrough Hole
TerminationSolder
Contact MaterialPhosphor Bronze
Contact FinishGold
Contact Finish Thickness10µin (0.25µm)
Contact TypeFull Bellows
ColorBlue
Flange FeatureTop Mount Opening, Unthreaded, 0.125" (3.18mm) Dia
Operating Temperature-65°C ~ 125°C
Material - InsulationPolybutylene Terephthalate (PBT)
Read OutDual
Other NamesS5284
