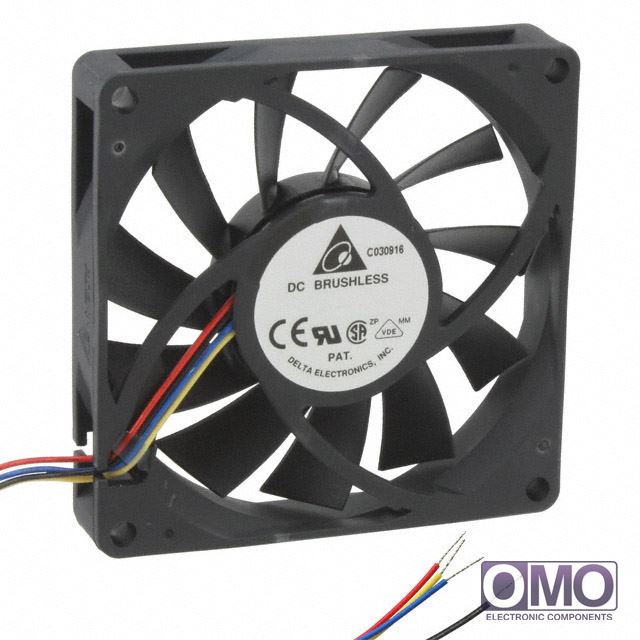

EFC0812DB-F00

To learn about the specification of EFC0812DB-F00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add EFC0812DB-F00 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of EFC0812DB-F00.
We are offering EFC0812DB-F00 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of EFC0812DB-F00

Voltage - Rated	12VDC
Size / Dimension	Square - 80mm L x 80mm H x 15mm W
Air Flow	48.8 CFM (1.38m³/min)
Static Pressure	0.171 in H2O (42.6 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	41 dB(A)
Power (Watts)	3.96W
RPM	3800 RPM
Termination	4 Wire Leads
Ingress Protection	-
Weight	0.148 lb (67.13g)
Operating Temperature	14 ~ 140°F (-10 ~ 60°C)
Current Rating	0.330A
Voltage Range	7 ~ 12.6VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Aluminum
Material - Blade	Plastic
Other Names	603-1159 EFC0812DBF00
