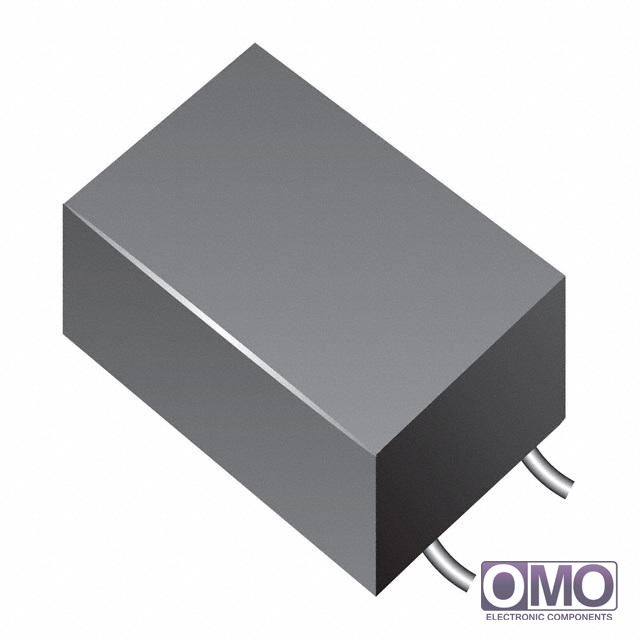

DR221-223AE

View larger image

Part Number

DR221-223AE

Manufacturer

Description
CHOKE COM MODE 22UH +50/-30% SMD
Category
Filters
Family
Common Mode Chokes
  • To learn about the specification of DR221-223AE, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add DR221-223AE with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of DR221-223AE.
  • We are offering DR221-223AE for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of DR221-223AE
PackagingCut Tape (CT)
Filter TypeData, Signal Line
Number of Lines2
Inductance22µH
Current250mA
DC Resistance (DCR)230 mOhm Max
Impedance900 Ohm
Operating Temperature-40°C ~ 125°C
Mounting TypeSurface Mount
Size / Dimension0.197" L x 0.130" W (5.00mm x 3.30mm)
Height (Max)0.130" (3.30mm)
Package / CaseHorizontal, 4 Flat Lead
Other NamesDR221-223AECT
