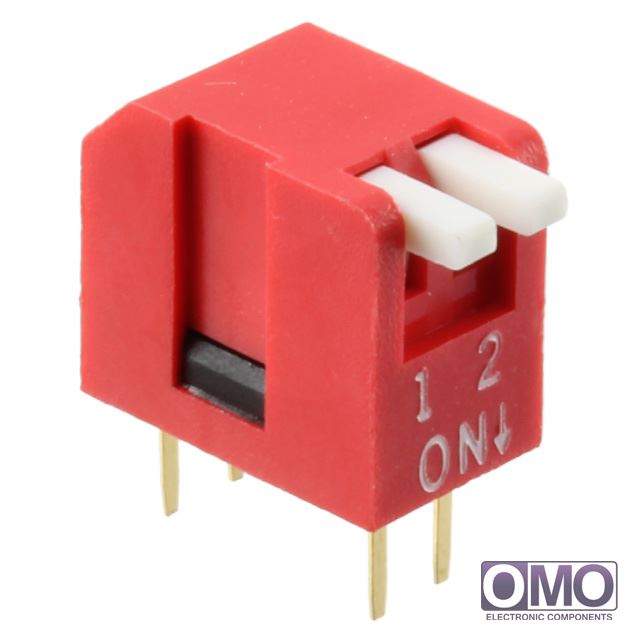

DPL02

To learn about the specification of DPL02, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add DPL02 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of DPL02.
We are offering DPL02 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of DPL02

Packaging	Tube
Circuit	SPST
Number of Positions	2
Current Rating	50mA
Voltage Rating	24VDC
Actuator Type	Piano
Actuator Level	Raised
Contact Material	Phosphor Bronze
Contact Finish	Gold
Height Above Board	0.402" (10.20mm)
Mounting Type	Through Hole, Right Angle
Termination Style	PC Pin
Pitch	0.100" (2.54mm), Full
Washable	No
Features	Epoxy Sealed Terminals
Body Material	Polybutylene Terephthalate (PBT), Glass Filled
Length	0.261" (6.63mm)
Operating Temperature	-20°C ~ 70°C
Mechanical Life	5,000 Cycles
Electrical Life	2,000 Cycles
Other Names	679-3551 DPL02-ND
