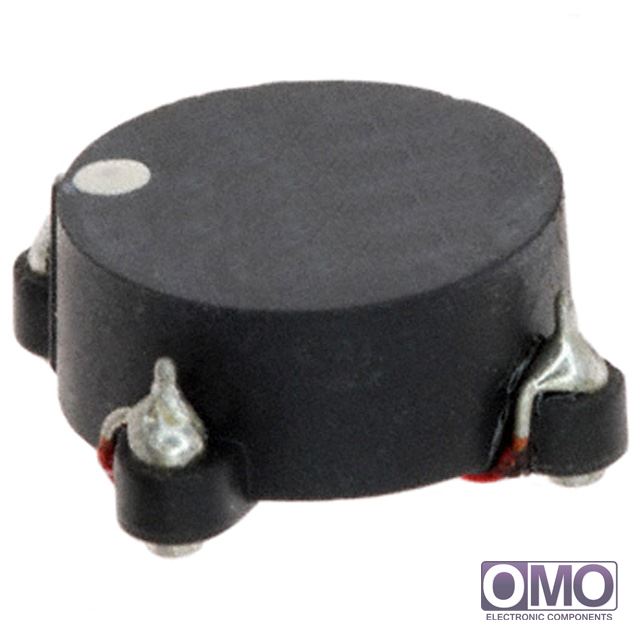

CM6560-105

View larger image

Part Number

CM6560-105

Manufacturer

Description
CHOKE COMMON MODE 1000.0UH SMD
Category
Filters
Family
Common Mode Chokes
  • To learn about the specification of CM6560-105, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add CM6560-105 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of CM6560-105.
  • We are offering CM6560-105 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of CM6560-105
PackagingTape & Reel (TR)
Filter TypePower Line
Number of Lines2
Inductance1mH
Current2.4A
DC Resistance (DCR)47 mOhm Max
Impedance-
Operating Temperature-55°C ~ 105°C
Mounting TypeSurface Mount
Size / Dimension0.630" L x 0.630" W (16.00mm x 16.00mm)
Height (Max)0.320" (8.13mm)
Package / CaseHorizontal, 4 PC Pad
