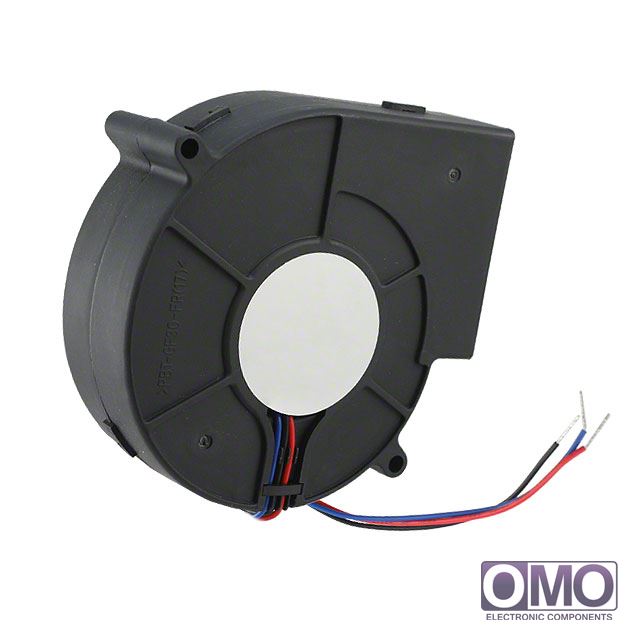

BFB1012H-F00

To learn about the specification of BFB1012H-F00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add BFB1012H-F00 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of BFB1012H-F00.
We are offering BFB1012H-F00 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of BFB1012H-F00

Voltage - Rated	12VDC
Size / Dimension	Rectangular/Rounded - 97.2mm L x 94.4mm H x 33mm W
Air Flow	25.4 CFM (0.719m³/min)
Static Pressure	1.000 in H2O (249.1 Pa)
Bearing Type	Ball
Fan Type	Blower
Features	Speed Sensor (Tach)
Noise	52 dB(A)
Power (Watts)	9.60W
RPM	3600 RPM
Termination	3 Wire Leads
Ingress Protection	-
Weight	0.353 lb (160.12g)
Operating Temperature	-
Current Rating	0.800A
Voltage Range	4 ~ 13.8VDC
Life Expectancy	-
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	603-1119 BFB1012HF00
