- Part Number

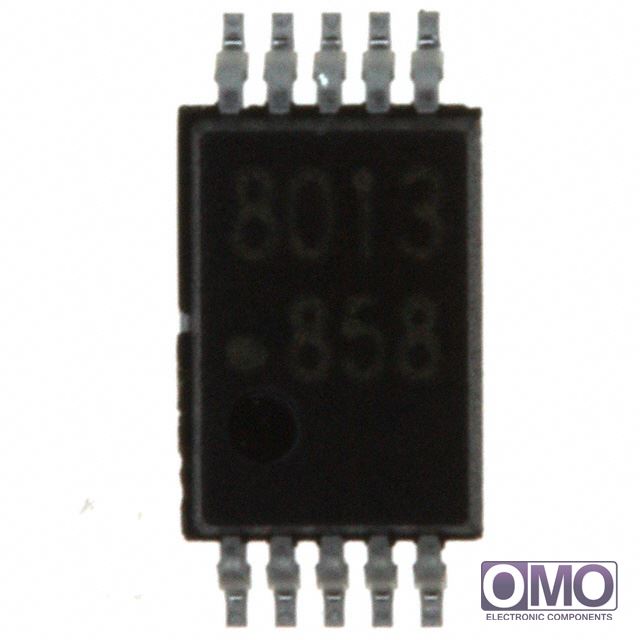

AN8013SH-E1V
- Manufacturer
Panasonic Electronic Components
- Description
- IC REG BCK BOOST ADJ 50MA 10SSOP
- Category
- Integrated Circuits (ICs)
- Family
- PMIC - Voltage Regulators - DC DC Switching Regulators
- To learn about the specification of AN8013SH-E1V, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add AN8013SH-E1V with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of AN8013SH-E1V.
- We are offering AN8013SH-E1V for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AN8013SH-E1V
| Packaging | Cut Tape (CT) | |
| Function | Step-Up, Step-Down | |
| Output Configuration | Positive | |
| Topology | Buck, Boost | |
| Output Type | Adjustable | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 3.6V | |
| Voltage - Input (Max) | 34V | |
| Voltage - Output (Min/Fixed) | 3.6V | |
| Voltage - Output (Max) | 34V | |
| Current - Output | 50mA | |
| Frequency - Switching | 20kHz ~ 500kHz | |
| Synchronous Rectifier | No | |
| Operating Temperature | -30°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |
| Package / Case | 10-FSOP (0.169", 4.30mm Width) | |
| Supplier Device Package | 10-SSOP | |
| Other Names | AN8013SH-E1V-ND AN8013SH-E1VCT AN8013SHE1V | |
| call me | [email protected] | |
