AN1201SM-TXL

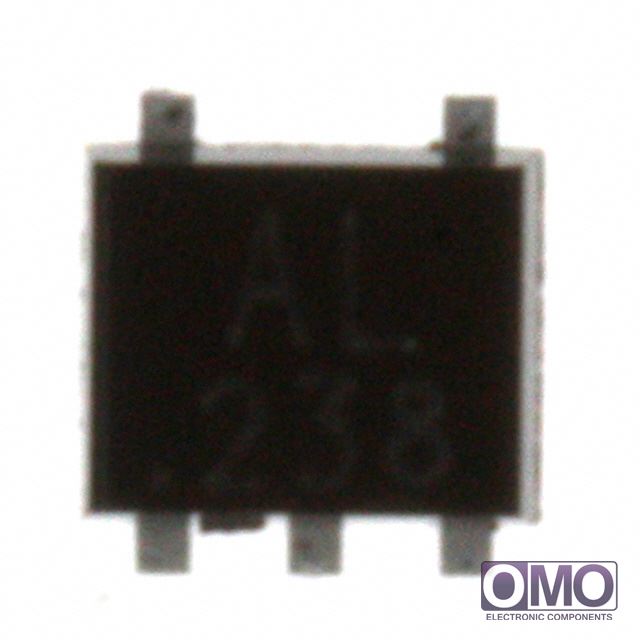

View larger image

Part Number

AN1201SM-TXL

Manufacturer

Description
IC REG CHARGE PUMP INV SMINI-5
Category
Integrated Circuits (ICs)
Family
PMIC - Voltage Regulators - DC DC Switching Regulators
  • To learn about the specification of AN1201SM-TXL, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add AN1201SM-TXL with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of AN1201SM-TXL.
  • We are offering AN1201SM-TXL for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AN1201SM-TXL
PackagingTape & Reel (TR)
FunctionRatiometric
Output ConfigurationNegative
TopologyCharge Pump
Output TypeFixed
Number of Outputs1
Voltage - Input (Min)2V
Voltage - Input (Max)3V
Voltage - Output (Min/Fixed)-Vin
Voltage - Output (Max)-
Current - Output-
Frequency - Switching125kHz
Synchronous RectifierNo
Operating Temperature-30°C ~ 85°C (TA)
Mounting TypeSurface Mount
Package / Case6-SMD (5 Leads), Flat Lead
Supplier Device PackageSSMini5-F2
Other NamesAN1201SMTXL
AN1201SMTXLTR
