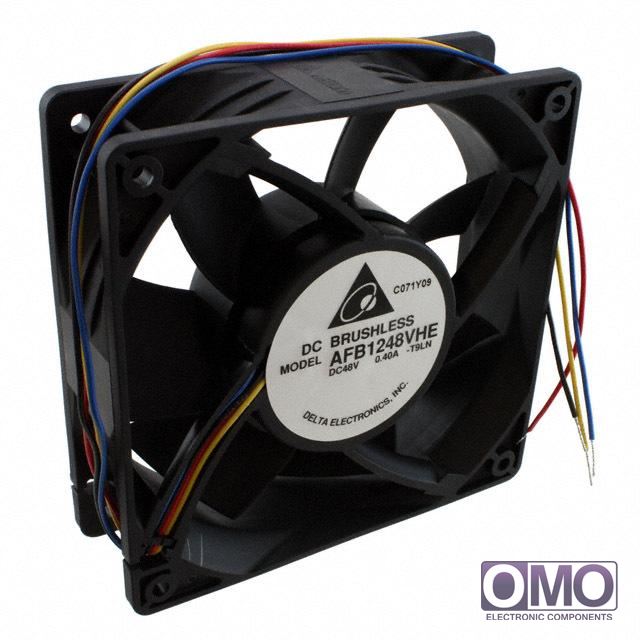

AFB1248VHE-T9LN

To learn about the specification of AFB1248VHE-T9LN, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add AFB1248VHE-T9LN with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of AFB1248VHE-T9LN.
We are offering AFB1248VHE-T9LN for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of AFB1248VHE-T9LN

Voltage - Rated	48VDC
Size / Dimension	Square - 120mm L x 120mm H x 38mm W
Air Flow	190.5 CFM (5.39m³/min)
Static Pressure	0.694 in H2O (173.0 Pa)
Bearing Type	Ball
Fan Type	Tubeaxial
Features	PWM Control; Speed Sensor (Tach)
Noise	55.5 dB(A)
Power (Watts)	14.9W
RPM	4100 RPM
Termination	4 Wire Leads
Ingress Protection	IP55 - Dust Protected, Water Resistant
Weight	0.728 lb (330.22g)
Operating Temperature	14 ~ 158°F (-10 ~ 70°C)
Current Rating	0.310A
Voltage Range	34 ~ 56VDC
Life Expectancy	70000 hrs @ 40°C
Material - Frame	Plastic
Material - Blade	Plastic
Other Names	603-1474 AFB1248VHET9LN
