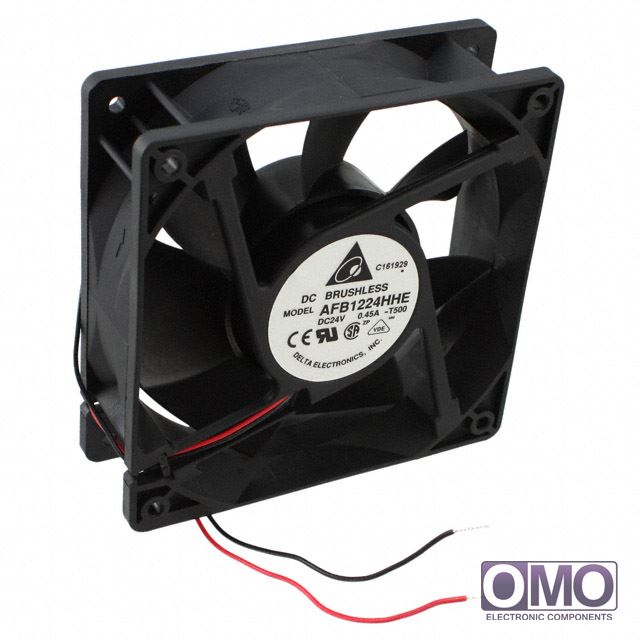

Part Number

AFB1224HHE-T500

Manufacturer

Description
FAN AXIAL 120X38MM 24VDC WIRE
Category
Fans, Thermal Management
Family
DC Fans

  • To learn about the specification of AFB1224HHE-T500, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add AFB1224HHE-T500 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of AFB1224HHE-T500.
  • We are offering AFB1224HHE-T500 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AFB1224HHE-T500
Voltage - Rated24VDC
Size / DimensionSquare - 120mm L x 120mm H x 38mm W
Air Flow120.1 CFM (3.40m³/min)
Static Pressure0.354 in H2O (88.2 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise44 dB(A)
Power (Watts)7.20W
RPM2900 RPM
Termination2 Wire Leads
Ingress ProtectionIP55 - Dust Protected, Water Resistant
Weight0.564 lb (255.83g)
Operating Temperature14 ~ 140°F (-10 ~ 60°C)
Current Rating0.300A
Voltage Range7 ~ 27.6VDC
Life Expectancy70000 hrs @ 40°C
Material - FramePlastic
Material - BladePlastic
Other Names603-1470
AFB1224HHET500
