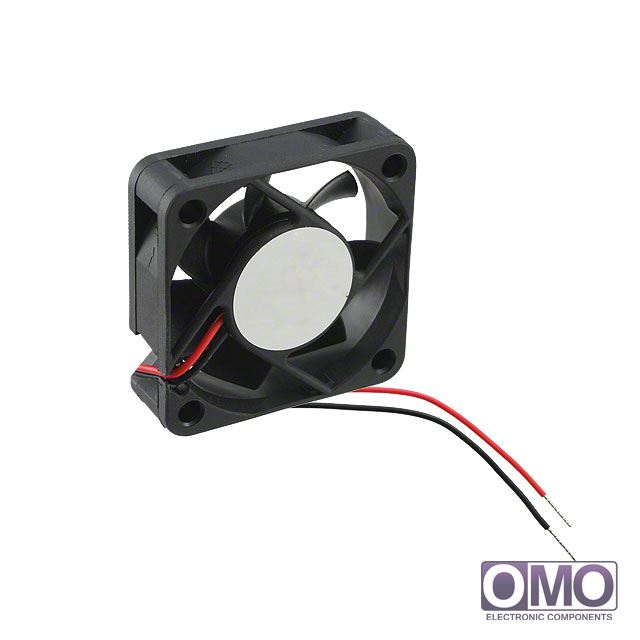

AFB0512HB

View larger image

Part Number

AFB0512HB

Manufacturer

Description
FAN AXIAL 50X15MM 12VDC WIRE
Category
Fans, Thermal Management
Family
DC Fans
  • To learn about the specification of AFB0512HB, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add AFB0512HB with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of AFB0512HB.
  • We are offering AFB0512HB for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of AFB0512HB
Voltage - Rated12VDC
Size / DimensionSquare - 50mm L x 50mm H x 15mm W
Air Flow14.1 CFM (0.399m³/min)
Static Pressure0.240 in H2O (59.8 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise32 dB(A)
Power (Watts)1.20W
RPM5600 RPM
Termination2 Wire Leads
Ingress Protection-
Weight0.07 lb (31.75g)
Operating Temperature-
Current Rating0.100A
Voltage Range7 ~ 13.8VDC
Life Expectancy-
Material - FramePlastic
Material - BladePlastic
Other Names603-1024
