- Part Number

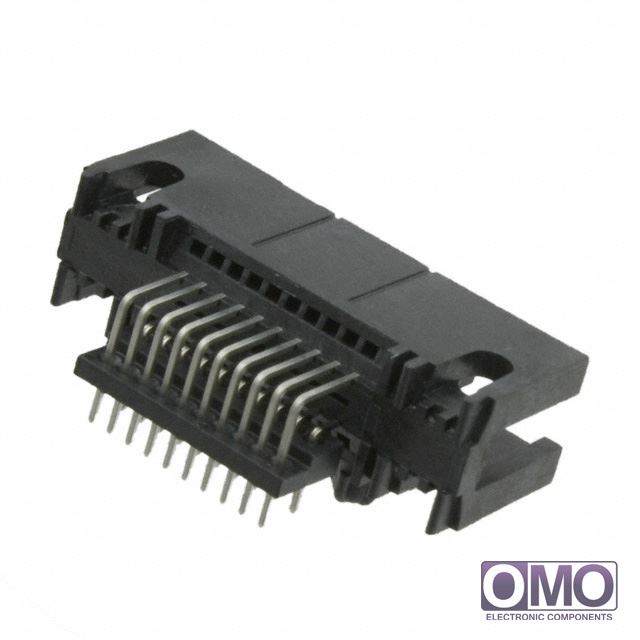

81020-500203
- Manufacturer
3M
- Description
- CONN HEADER 20POS R/A THRU HOLE
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of 81020-500203, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 81020-500203 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 81020-500203.
- We are offering 81020-500203 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 81020-500203
| Packaging | Tray | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 20 | |
| Number of Positions Loaded | All | |
| Pitch | 0.050" (1.27mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Contact Mating Length | 0.140" (3.56mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | Board Lock | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Natural | |
| Other Names | 05400775809 5400775809 54007758099 80620098113 81020500203 | |
| call me | [email protected] | |
