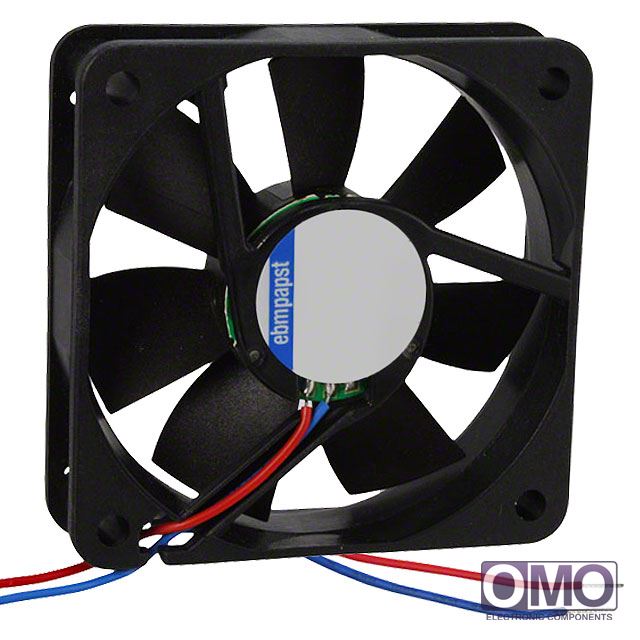

614F

To learn about the specification of 614F, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 614F with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 614F.
We are offering 614F for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 614F

Voltage - Rated	24VDC
Size / Dimension	Square - 60mm L x 60mm H x 15mm W
Air Flow	17.1 CFM (0.484m³/min)
Static Pressure	-
Bearing Type	Sintec
Fan Type	Tubeaxial
Features	-
Noise	27 dB(A)
Power (Watts)	1.10W
RPM	3900 RPM
Termination	2 Wire Leads
Ingress Protection	-
Weight	0.066 lb (29.94g)
Operating Temperature	-4 ~ 158°F (-20 ~ 70°C)
Current Rating	-
Voltage Range	21.6 ~ 26.4VDC
Life Expectancy	50000 hrs @ 20°C
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Material - Blade	Polyamide (PA), Fiberglass Reinforced
Other Names	381-2488 614F-ND
