Part Number

566010B03400G

Manufacturer

Description

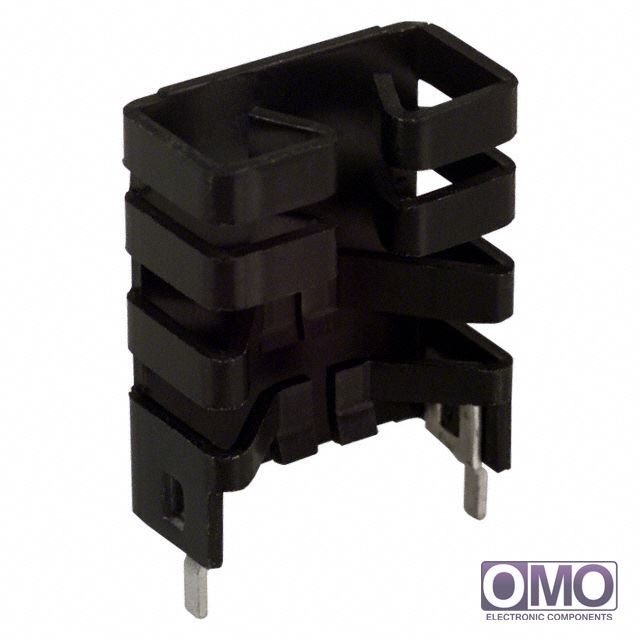

HEATSINK W/TAB BLACK
Category
Fans, Thermal Management
Family
Thermal - Heat Sinks

  • To learn about the specification of 566010B03400G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 566010B03400G with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 566010B03400G.
  • We are offering 566010B03400G for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 566010B03400G
TypeBoard Level, Vertical
Package CooledMultiwatt, SIP
Attachment MethodClip and PC Pin
ShapeRectangular, Fins
Length1.220" (30.99mm)
Width1.000" (25.40mm)
Diameter-
Height Off Base (Height of Fin)0.500" (12.70mm)
Power Dissipation @ Temperature Rise2W @ 30°C
Thermal Resistance @ Forced Air Flow4°C/W @ 300 LFM
Thermal Resistance @ Natural11.5°C/W
MaterialAluminum
Material FinishBlack Anodized
Other Names042003
HS377
