Part Number

513102B02500G

Manufacturer

Description

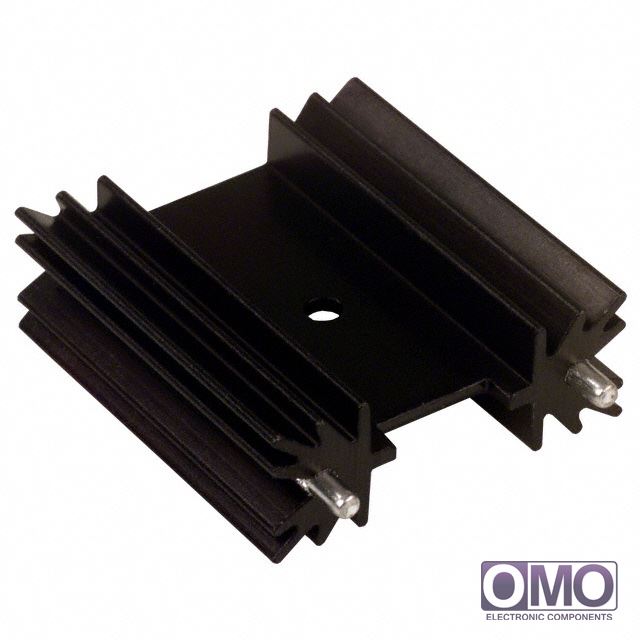

HEATSINK TO-220 W/PINS 1.5"TALL
Category
Fans, Thermal Management
Family
Thermal - Heat Sinks

  • To learn about the specification of 513102B02500G, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 513102B02500G with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 513102B02500G.
  • We are offering 513102B02500G for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 513102B02500G
TypeBoard Level, Vertical
Package CooledTO-220
Attachment MethodBolt On and PC Pin
ShapeRectangular, Fins
Length1.500" (38.10mm)
Width1.375" (34.93mm)
Diameter-
Height Off Base (Height of Fin)0.500" (12.70mm)
Power Dissipation @ Temperature Rise8W @ 80°C
Thermal Resistance @ Forced Air Flow3°C/W @ 500 LFM
Thermal Resistance @ Natural11°C/W
MaterialAluminum
Material FinishBlack Anodized
Other Names041519
HS346
