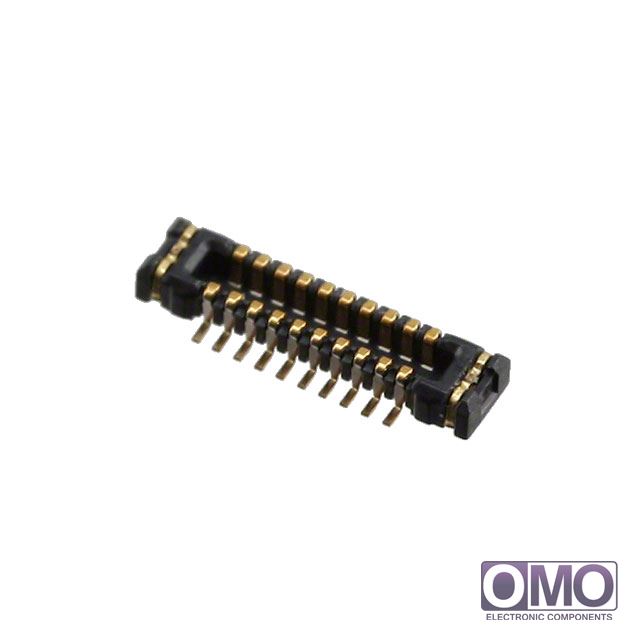

- Part Number
5024302010
- Manufacturer
Molex Connector Corporation
- Description
- CONN PLUG 20POS VERT DUAL SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of 5024302010, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 5024302010 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 5024302010.
- We are offering 5024302010 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 5024302010
| Packaging | Cut Tape (CT) | |
| Connector Type | Plug, Outer Shroud Contacts | |
| Number of Positions | 20 | |
| Pitch | 0.016" (0.40mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Solder Retention | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 3.9µin (0.10µm) | |
| Mated Stacking Heights | 1mm | |
| Height Above Board | 0.031" (0.80mm) | |
| Other Names | WM24078 WM24078-ND WM24078CT | |
| call me | [email protected] | |
