5015947011

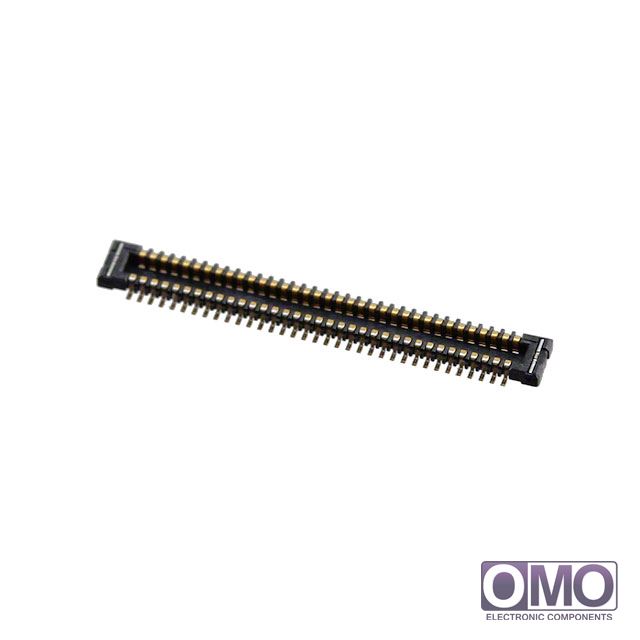

View larger image

Part Number

5015947011

Manufacturer

Description
CONN PLUG 70POS VERT DUAL SMD
Category
Connectors, Interconnects
Family
Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
  • To learn about the specification of 5015947011, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 5015947011 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 5015947011.
  • We are offering 5015947011 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 5015947011
PackagingTape & Reel (TR)
Connector TypePlug, Outer Shroud Contacts
Number of Positions70
Pitch0.016" (0.40mm)
Number of Rows2
Mounting TypeSurface Mount
FeaturesSolder Retention
Contact FinishGold
Contact Finish Thickness3.9µin (0.10µm)
Mated Stacking Heights0.9mm
Height Above Board0.028" (0.71mm)
Other Names0501594-7011
0501594-7011-C
05015947011
05015947011-C
501594-7010
501594-7011
501594-7011-C
501594-7011-ND
5015947011-C
WM24048
WM24048-ND
