- Part Number

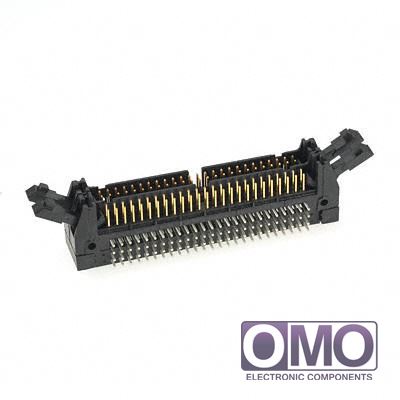

3429-D302
- Manufacturer
3M
- Description
- CONN HEADER STKD 26POS R/A LO
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of 3429-D302, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 3429-D302 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 3429-D302.
- We are offering 3429-D302 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 3429-D302
| Packaging | Bulk | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded, Stackable (2) | |
| Number of Positions | 26, 26 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Contact Mating Length | 0.240" (6.10mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Latch Lock/Eject Hooks, Long | |
| Features | - | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Color | Gray | |
| Other Names | 05400755121 80130022603 | |
| call me | [email protected] | |
