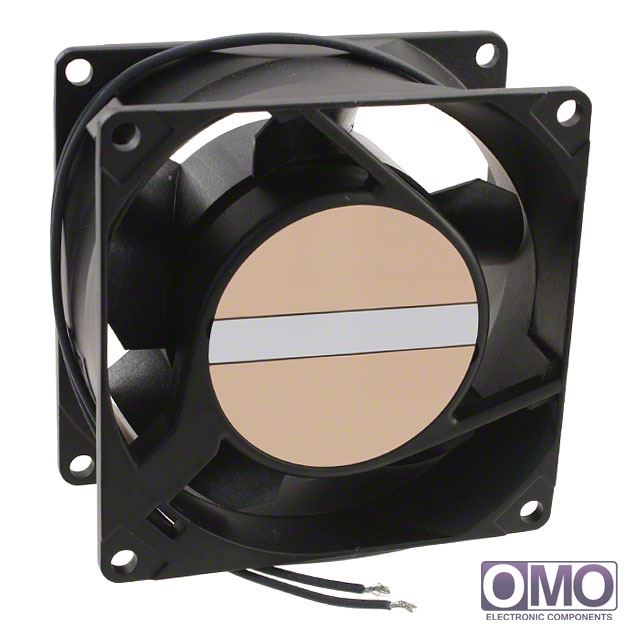

3115FS-23W-B10-A00

View larger image

Part Number

3115FS-23W-B10-A00

Manufacturer

Description
FAN AXIAL 80X38MM 230VAC WIRE
Category
Fans, Thermal Management
Family
AC Fans
  • To learn about the specification of 3115FS-23W-B10-A00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 3115FS-23W-B10-A00 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 3115FS-23W-B10-A00.
  • We are offering 3115FS-23W-B10-A00 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 3115FS-23W-B10-A00
TypeAC
Voltage - Rated230VAC
Size / DimensionSquare - 80mm L x 80mm H x 38mm W
Air Flow20.0 CFM (0.566m³/min)
Static Pressure0.090 in H2O (22.5 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise35 dB
Power (Watts)6.5W
RPM2050 RPM
Termination2 Wire Leads
Ingress Protection-
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Weight0.74 lb (335.66g)
Current Rating0.050A
Voltage Range-
Life Expectancy50000 hrs @ 25°C
Material - FrameAluminum
Material - BladePlastic
Other Names3115FS23WB10A00
P12879
