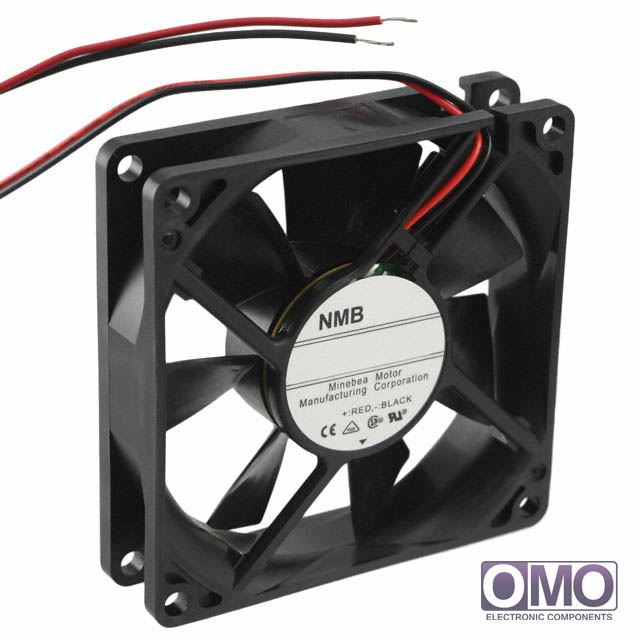

3108NL-04W-B10-P00

View larger image

Part Number

3108NL-04W-B10-P00

Manufacturer

Description
FAN AXIAL 80X20MM 12VDC WIRE
Category
Fans, Thermal Management
Family
DC Fans
  • To learn about the specification of 3108NL-04W-B10-P00, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 3108NL-04W-B10-P00 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 3108NL-04W-B10-P00.
  • We are offering 3108NL-04W-B10-P00 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 3108NL-04W-B10-P00
Voltage - Rated12VDC
Size / DimensionSquare - 80mm L x 80mm H x 20mm W
Air Flow26.5 CFM (0.750m³/min)
Static Pressure0.084 in H2O (20.9 Pa)
Bearing TypeBall
Fan TypeTubeaxial
Features-
Noise26 dB
Power (Watts)1.08W
RPM2350 RPM
Termination2 Wire Leads
Ingress Protection-
Weight0.187 lb (84.82g)
Operating Temperature14 ~ 158°F (-10 ~ 70°C)
Current Rating0.090A
Voltage Range6 ~ 13.8VDC
Life Expectancy-
Material - FramePlastic
Material - BladePlastic
Other Names08020MA-12J-EA-00
3108NL04WB10P00
P12836
