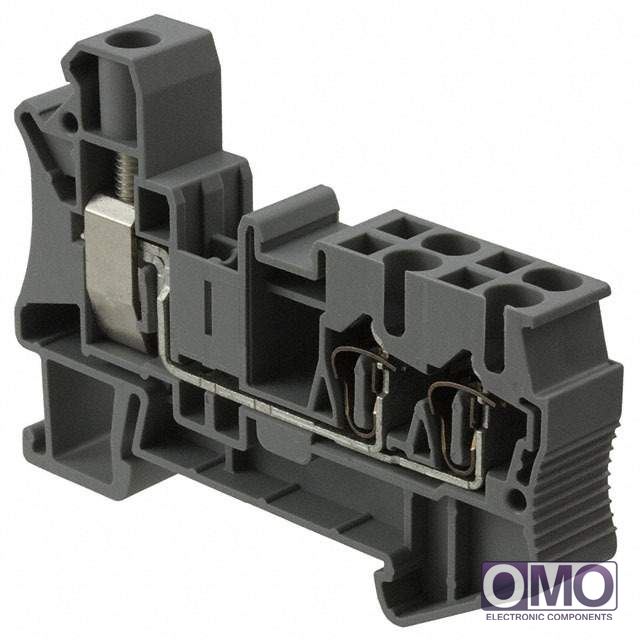

3033139

To learn about the specification of 3033139, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
To process your RFQ, please add 3033139 with quantity into BOM.
Omoelec.com does NOT require any registration to request a quote of 3033139.
We are offering 3033139 for competitive price in the global market, please send us a quote request for pricing. Thank you!

Quick Order

Specifications of 3033139

Type	Feed Through
Disconnect Type	-
Number of Positions	5
Number of Levels	1
Terminal - Width	10.3mm
Termination Style	Push In Spring; Screw
Current - IEC	55A
Voltage - IEC	800V
Current - UL	50A
Voltage - UL	600V
Wire Gauge or Range - AWG	8-20 AWG
Wire Gauge or Range - mm²	0.5-16mm²
Features	-
Color	Gray
Fuse Type	-
Material - Insulation	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Stripping Length	10mm
Other Names	277-3855 3033139-ND STU 10/ 4X2,5 STU10/4X2,5
call me	[email protected]

3033139 Related Products

Phoenix Contact
