- Part Number

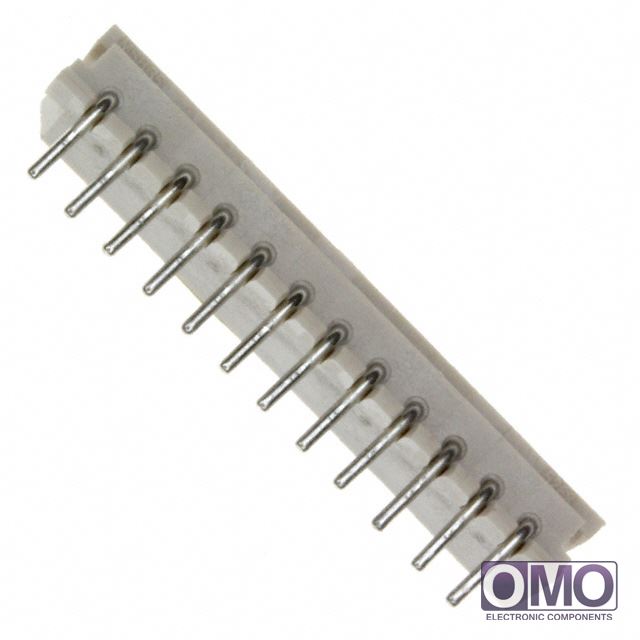

22-05-7125
- Manufacturer
Molex Connector Corporation
- Description
- CONN HEADER 12POS 2.5MM R/A TIN
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of 22-05-7125, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 22-05-7125 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 22-05-7125.
- We are offering 22-05-7125 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 22-05-7125
| Packaging | Bulk | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 12 | |
| Number of Positions Loaded | All | |
| Pitch | 0.098" (2.50mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.138" (3.50mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | - | |
| Features | - | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 160µin (4.06µm) | |
| Color | Natural | |
| Other Names | 0022057125 22-05-7125-ND 5268-12A WM18910 | |
| call me | [email protected] | |
