- Part Number
19032628A
- Manufacturer
Comair Rotron
- Description

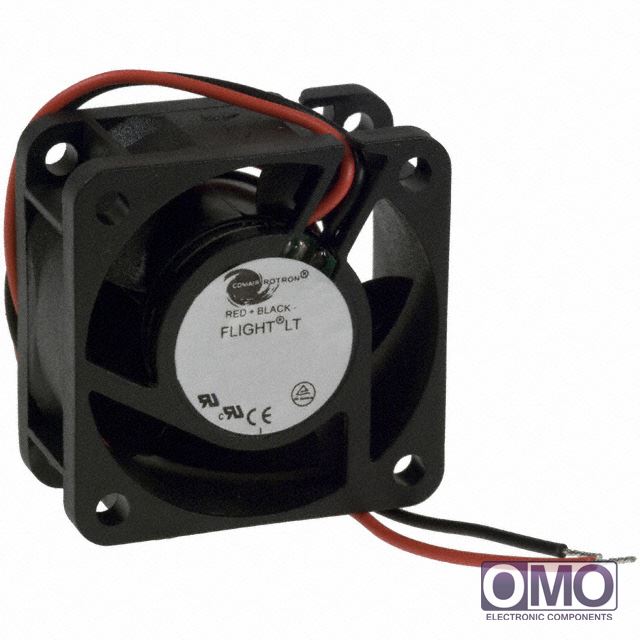

- FAN AXIAL 40X20MM CR0424HB-C50
- Category
- Fans, Thermal Management
- Family
- DC Fans
- To learn about the specification of 19032628A, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 19032628A with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 19032628A.
- We are offering 19032628A for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 19032628A
| Voltage - Rated | 24VDC | |
| Size / Dimension | Square - 40mm L x 40mm H x 20mm W | |
| Air Flow | 10.0 CFM (0.283m³/min) | |
| Static Pressure | 0.256 in H2O (63.8 Pa) | |
| Bearing Type | Ball | |
| Fan Type | Tubeaxial | |
| Features | - | |
| Noise | 31.9 dB(A) | |
| Power (Watts) | 2.20W | |
| RPM | 7800 RPM | |
| Termination | 2 Wire Leads | |
| Ingress Protection | - | |
| Weight | 0.075 lb (34.02g) | |
| Operating Temperature | - | |
| Current Rating | 0.090A | |
| Voltage Range | 21.6 ~ 26.4VDC | |
| Life Expectancy | - | |
| Material - Frame | - | |
| Material - Blade | - | |
| Other Names | 032628 CR360 | |
| call me | [email protected] | |
