- Part Number

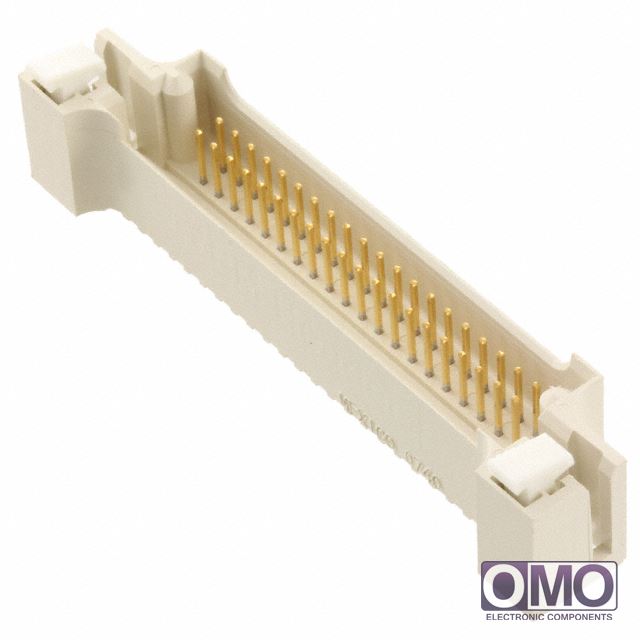

146315-1
- Manufacturer
TE Connectivity AMP Connectors
- Description
- CONN HEADER VERT 40POS .100 30AU
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Headers, Male Pins
- To learn about the specification of 146315-1, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 146315-1 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 146315-1.
- We are offering 146315-1 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 146315-1
| Packaging | Bulk | |
| Connector Type | Shrouded | |
| Number of Positions | 40 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 2 | |
| Row Spacing | 0.100" (2.54mm) | |
| Height Stacking (Mating) | - | |
| Molding Height Above Board | 0.550" (13.97mm) | |
| Contact Mating Length | - | |
| Mounting Type | Through Hole | |
| Termination | Solder | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 30µin (0.76µm) | |
| Features | - | |
| Color | White | |
| Other Names | 146315-1-ND A112213 | |
| call me | [email protected] | |
