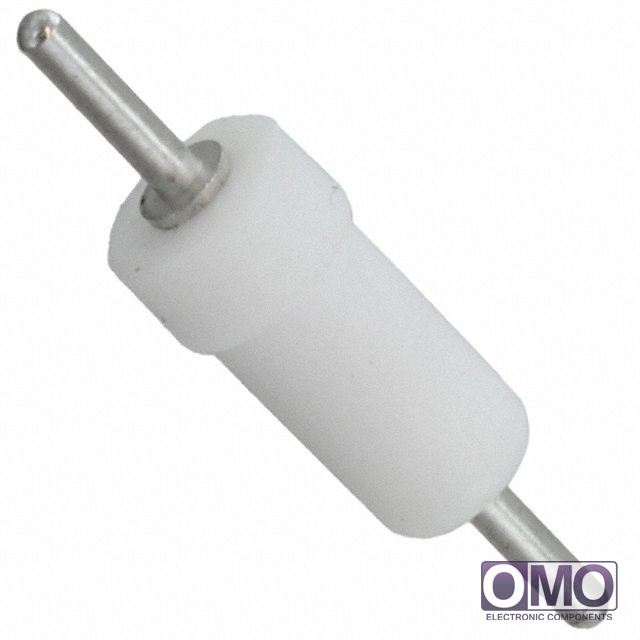

Part Number

11158

Manufacturer

Description
CONN PC PIN CIRC 0.040DIA TIN
Category
Connectors, Interconnects
Family
Terminals - PC Pin, Single Post Connectors

  • To learn about the specification of 11158, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 11158 with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 11158.
  • We are offering 11158 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 11158
PackagingBulk
Terminal TypePC Pin
Terminal StyleDouble End
Pin Size - Above Flange0.040" (1.02mm) Dia
Pin Size - Below Flange0.040" (1.02mm) Dia
Length Above Flange0.210" (5.33mm)
Length Below Flange0.416" (10.57mm)
Length - Overall0.719" (18.26mm)
Flange Diameter0.172" (4.37mm)
Mounting Hole Diameter0.136" (3.45mm)
Mounting TypeThrough Hole
TerminationPress-Fit
InsulationInsulated
Board Thickness0.062" (1.57mm)
Contact MaterialBrass
Contact FinishTin
Contact Finish Thickness-
Material - InsulationPolytetrafluoroethylene (PTFE)
Insulation ColorWhite
Other Names11158K
11158K-ND
36-11158
