10025026-10003TLF

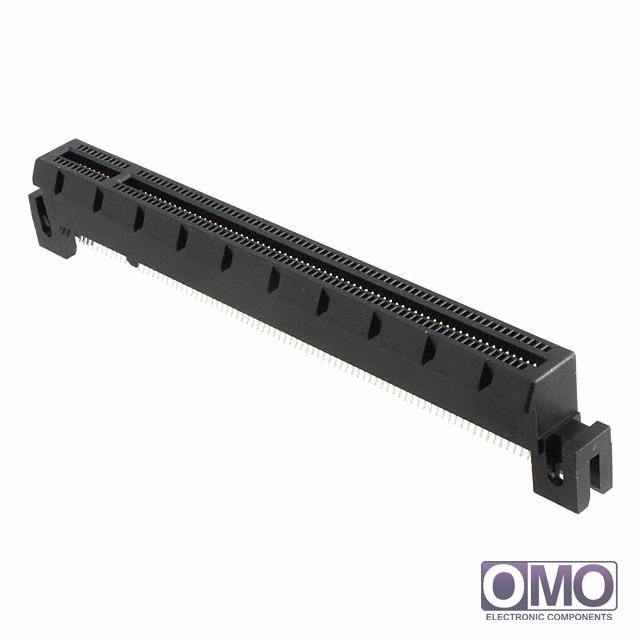

View larger image

Part Number

10025026-10003TLF

Manufacturer

Description
CONN PCI EXPRESS 164POS VERT PCB
Category
Connectors, Interconnects
Family
Card Edge Connectors - Edgeboard Connectors
  • To learn about the specification of 10025026-10003TLF, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
  • To process your RFQ, please add 10025026-10003TLF with quantity into BOM.
  • Omoelec.com does NOT require any registration to request a quote of 10025026-10003TLF.
  • We are offering 10025026-10003TLF for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 10025026-10003TLF
PackagingTray
Card TypePCI Express™
GenderFemale
Number of Positions/Bay/Row-
Number of Positions164
Card Thickness0.062" (1.57mm)
Number of Rows2
Pitch0.039" (1.00mm)
FeaturesCard Extender, Locking Ramp
Mounting TypeBoard Edge, Straddle Mount
TerminationSolder
Contact MaterialCopper Alloy
Contact FinishGold
Contact Finish Thickness30µin (0.76µm)
Contact TypeCantilever
ColorBlack
Flange FeatureStraddle Mount Opening, Unthreaded, 0.079" (2.00mm)
Operating Temperature-55°C ~ 85°C
Material - InsulationPolyamide (PA), Nylon, Glass Filled
Read OutDual
Other Names609-4699
