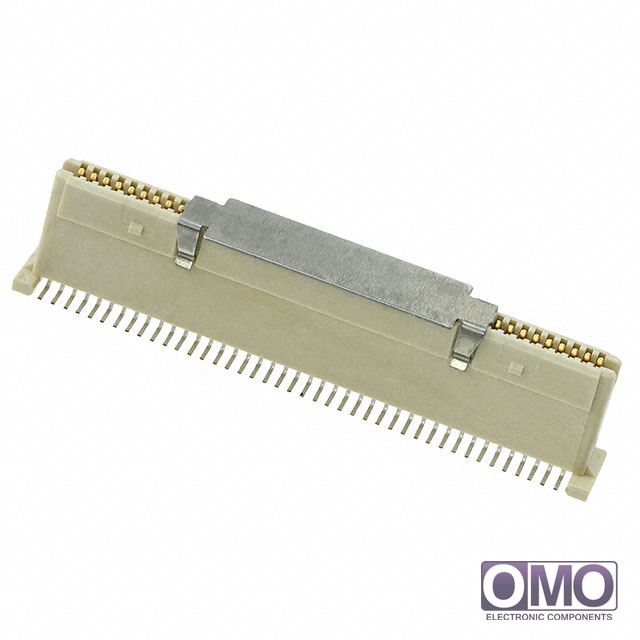

- Part Number
0717423003
- Manufacturer
Molex Connector Corporation
- Description
- CONN RECPT 84POS 1MM SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular - Board to Board Connectors - Arrays, Edge Type, Mezzanine
- To learn about the specification of 0717423003, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 0717423003 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 0717423003.
- We are offering 0717423003 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0717423003
| Packaging | Tape & Reel (TR) | |
| Connector Type | Receptacle, Outer Shroud Contacts | |
| Number of Positions | 84 | |
| Pitch | 0.039" (1.00mm) | |
| Number of Rows | 2 | |
| Mounting Type | Surface Mount | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 10µin (0.25µm) | |
| Mated Stacking Heights | 13mm, 15mm | |
| Height Above Board | 0.406" (10.30mm) | |
| Other Names | 071742-3003 71742-3003 717423003 WM3499TR | |
| call me | [email protected] | |
