- Part Number

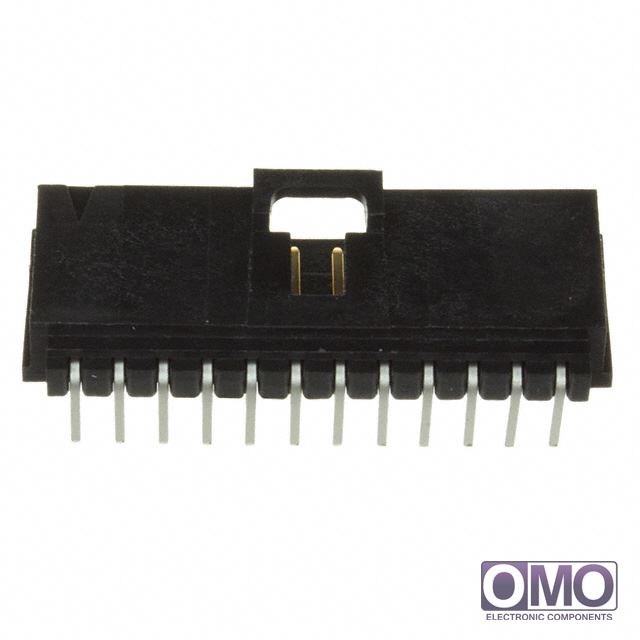

0705550046
- Manufacturer
Molex Connector Corporation
- Description
- CONN HEADER 12POS .100 R/A 15AU
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of 0705550046, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 0705550046 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 0705550046.
- We are offering 0705550046 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0705550046
| Packaging | Tube | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 12 | |
| Number of Positions Loaded | All | |
| Pitch | 0.100" (2.54mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | 0.240" (6.10mm) | |
| Mounting Type | Through Hole, Right Angle | |
| Termination | Solder | |
| Fastening Type | Latch Holder | |
| Features | Board Guide | |
| Contact Finish | Gold | |
| Contact Finish Thickness | 15µin (0.38µm) | |
| Color | Black | |
| Other Names | 70555-0046 705550046 A-70555-0046 WM4185 | |
| call me | [email protected] | |
