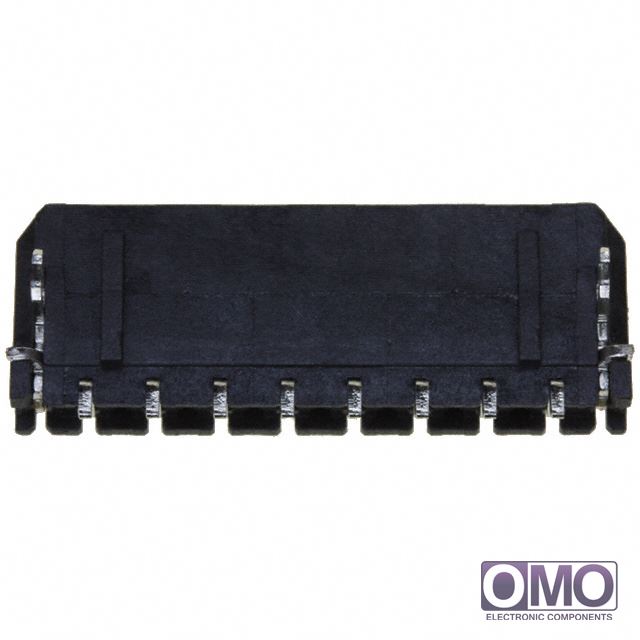

- Part Number
0436500809
- Manufacturer
Molex Connector Corporation
- Description
- CONN HEADER 8POS 3MM RT ANG SMD
- Category
- Connectors, Interconnects
- Family
- Rectangular Connectors - Headers, Male Pins
- To learn about the specification of 0436500809, please search the datasheet by clicking the link above. If you couldn't find the correct datasheet, please refer to the manufacturer's official datasheet.
- To process your RFQ, please add 0436500809 with quantity into BOM.
- Omoelec.com does NOT require any registration to request a quote of 0436500809.
- We are offering 0436500809 for competitive price in the global market, please send us a quote request for pricing. Thank you!
Quick Order
Specifications of 0436500809
| Packaging | Cut Tape (CT) | |
| Contact Type | Male Pin | |
| Connector Type | Header, Shrouded | |
| Number of Positions | 8 | |
| Number of Positions Loaded | All | |
| Pitch | 0.118" (3.00mm) | |
| Number of Rows | 1 | |
| Row Spacing | - | |
| Contact Mating Length | - | |
| Mounting Type | Surface Mount, Right Angle | |
| Termination | Solder | |
| Fastening Type | Locking Ramp | |
| Features | Board Lock | |
| Contact Finish | Tin | |
| Contact Finish Thickness | 100µin (2.54µm) | |
| Color | Black | |
| Other Names | WM2448 WM2448-ND WM2448CT | |
| call me | [email protected] | |
